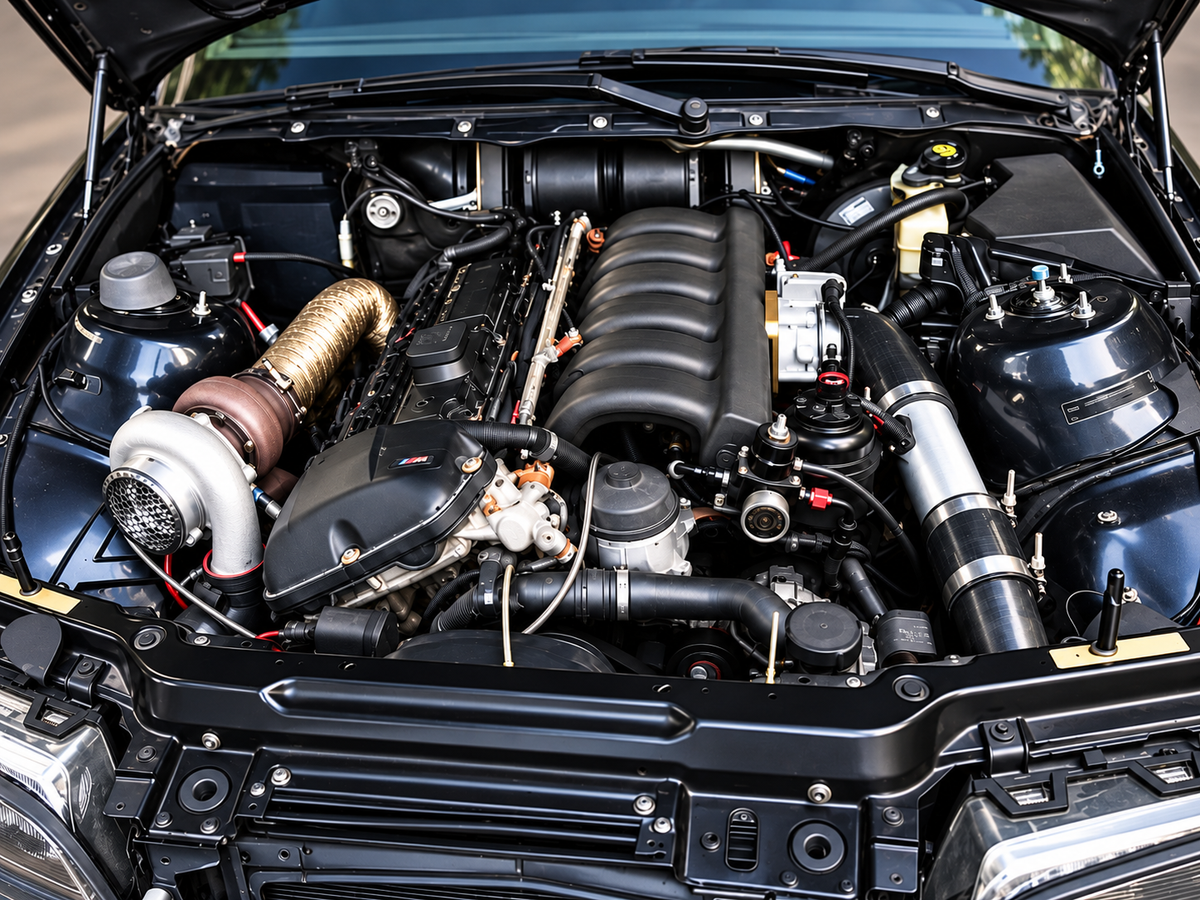

BMW E46 MS43 Forced Induction Calibration

Take your M5X-powered BMW beyond its naturally aspirated limits with a custom LRW forced induction calibration for the Siemens MS43 ECU. Designed for turbocharged and supercharged applications, this service provides individualized calibration tailored to your engine, fuel system, airflow configuration, and performance goals.

Whether you're building a responsive street car or a higher-horsepower setup, our focus is on delivering reliable power, consistent fueling, and refined drivability.

Supported Applications

• BMW E46 325i / 330i / 325Ci / 330Ci
• BMW E39 525i / 530i
• Other compatible M54X applications equipped with Siemens MS43 engine management.

Minimum Hardware Requirements

• Fuel Injectors: DeatschWerks 650cc injectors (P/N 17U-01-0650-6) recommended as our standard minimum for forced induction applications. Equivalent or larger injectors may be accepted with appropriate calibration data and approval.

• MAF / MAP Sensor: HPX or equivalent blow-through MAF, or a supported MAP-based configuration.
• Fuel System: A properly functioning fuel system capable of maintaining the required fuel pressure and delivery under boost.

• Wideband O2 Sensor: A functioning wideband AFR monitoring system for datalogging and calibration validation.
• Engine Condition: The engine must be mechanically sound and free of vacuum leaks, boost leaks, and existing fuel or ignition system issues.
• Additional fuel system or engine modifications may be required depending on the intended horsepower, fuel type, and boost pressure.


Calibration Includes

• Custom fuel and ignition calibration.
• Injector scaling and latency adjustments.
• MAF calibration or supported MAP-based load calibration.
• VANOS optimization for forced induction.
• Throttle response and engine load adjustments.
• Boost-related fueling and ignition optimization.
• RPM limiter adjustments where appropriate.
• Datalog review and calibration refinement.

Required Information Before Tuning

• Customers must provide the following information:
• Engine displacement and internal modifications.
• Complete turbocharger or supercharger specifications.
• Intended boost pressure and horsepower goals.
• Fuel type and octane rating.
• Fuel injector manufacturer, model, and flow specifications.
• Fuel pump and fuel pressure regulator configuration.
• MAF Configuration: Specify the exact HPX or equivalent blow-through MAF sensor being used.
• MAP Configuration: If using a MAP sensor, provide its manufacturer, part number, and pressure range.
• Current ECU calibration file.
• Important Sensor Requirements:

Customers using an uncommon or aftermarket MAF/MAP sensor must provide a link to the manufacturer's technical datasheet.

For MAF sensors, the required information includes the sensor's airflow transfer function. For MAP sensors, the required information includes the pressure-to-voltage calibration and applicable pressure range.

Configurations requiring custom firmware development or unsupported load-measurement strategies must be approved before purchasing.

Remote Tuning Requirements

Remote tuning requires a compatible Siemens MS43 flashing interface and the ability to read, write, and datalog the ECU.

Customers are responsible for providing accurate hardware information and completing requested datalogs throughout the calibration process.

Following purchase, please email your order number, current ECU file, and complete modification list to Michael.Leto@lrwtuned.com.

Important Information

This is a custom calibration service, not a universal off-the-shelf tune. Each calibration is developed around the customer's individual engine and hardware configuration.

Final power output and boost limitations depend on engine condition, supporting modifications, fuel quality, and hardware capabilities.

All vehicles must be mechanically sound before tuning begins. Additional diagnostic work, hardware changes, or specialized calibration development may incur additional charges.

Please review our Pre-Tune Checklist before beginning the tuning process.
